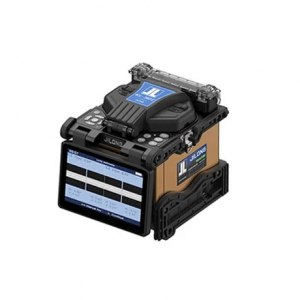

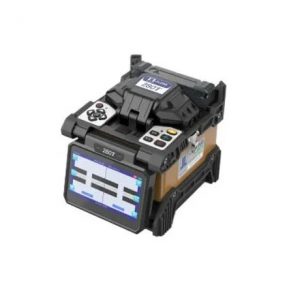

Core features
● 5″ 800×480 HD screen
● Suitable for SM/MM/DS/NZDS/BIF single core fiber
● 3-in-1 fiber holder
● X, Y, XY, X/Y : 320X Magnification
● Average splicing loss: 0.01dB
● Compact, light weight & faster
● Fast-splicing 6s, fast-heating 16s
● Electrodes life: 5000 times
● The last 10,000 splice records and 2,000 result images
● 5200mAh battery capacity, 300 times splice & heat cycles
● 5″ 800×480 HD screen
● Suitable for SM/MM/DS/NZDS/BIF single core fiber
● 3-in-1 fiber holder
● X, Y, XY, X/Y : 320X Magnification
● Average splicing loss: 0.01dB
● Compact, light weight & faster
● Fast-splicing 6s, fast-heating 16s
● Electrodes life: 5000 times
● The last 10,000 splice records and 2,000 result images
● 5200mAh battery capacity, 300 times splice & heat cycles
KL-360T Backbone Optical Fusion Splicer
Description
Features
Waterproof and dustproof
● Full body rubber sheath
● Adapt to various environments, anti-drop, waterproof, dustproof
● Full body rubber sheath
● Adapt to various environments, anti-drop, waterproof, dustproof
Fast heating, fast welding
Fully automatic welding heating
● 6S welding, let you work one step faster
● 16s heating, sustainable 215° heating
● 16s heating, sustainable 215° heating
Three in one fixture

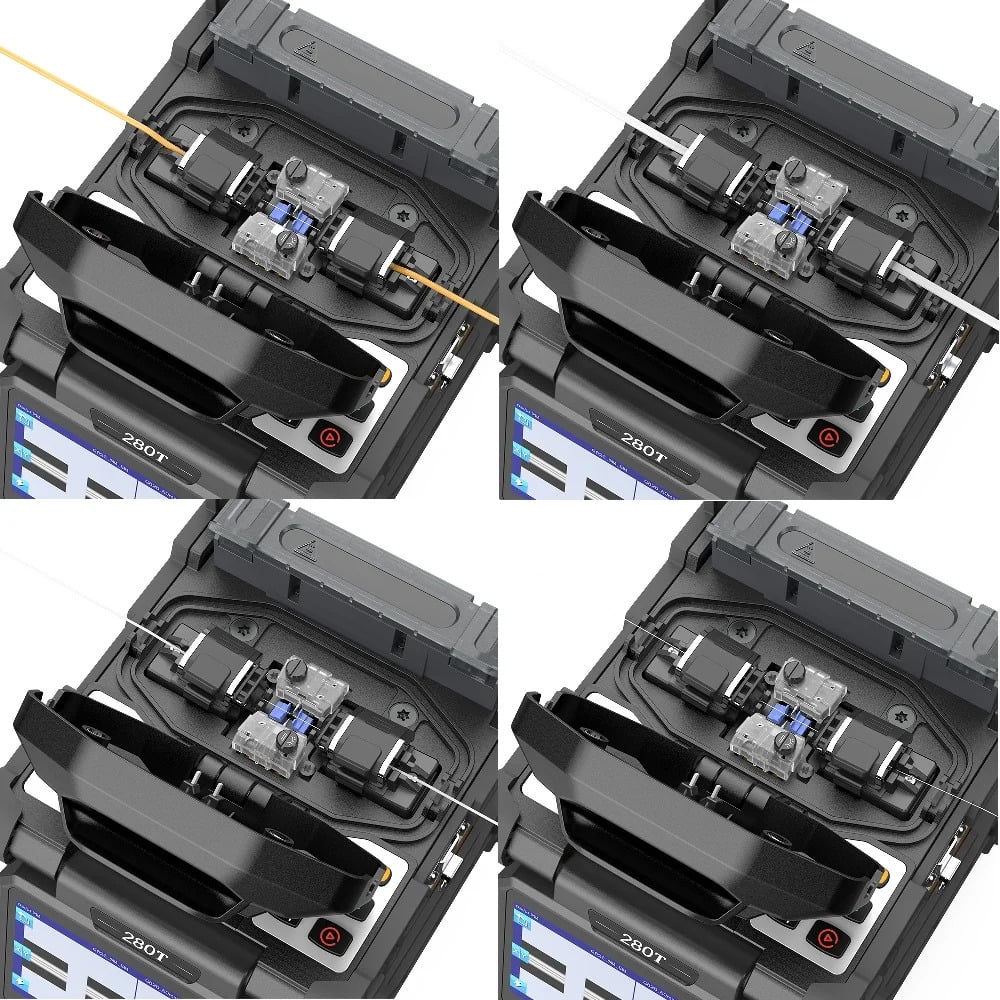

● Three-in-one multi-functional universal clamp
● The clamp is compatible with various types of optical fibers, saving time and effort in operation
● The clamp is compatible with various types of optical fibers, saving time and effort in operation
Core Alignment
● Core alignment--5.0” inch high-definition LCD display
● Provide users with a large and clear optical fiber
● Core display image, splice loss, core alignment, at a glance
● Provide users with a large and clear optical fiber
● Core display image, splice loss, core alignment, at a glance
double layer cooling tank
● Double-layer cooling tank--2 times more carrying capacity than conventional
Specification
| Splice Method | Core Alignment |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber/Cable | 0.25~3.0 mm / indoor cable |
| Fiber Holder | Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional)) |
| Fiber Diameter | Cladding: 80-150μm，Coating: 100~1000μm |
| Fiber Cleave Length | 8~16 mm |
| Splice mode | Max 128 modes |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★① |
| Return Loss | >>60dB |
| Splicing Time | SM Quick mode : 6 sec / SM Average: 16 Sec. |
| Estimated Splice Loss | Available |
| Heating Time | Quick mode 16 sec.(SM G652 250μm 40mm Sleeve) adjustable |
| Protection Sleeve Length | 20mm, 30mm, 40mm, 50mm, 60mm |
| Heat Programs | Max 32 modes |
| Battery | 5200mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★② |
| Electrode Life | 5000 arcs, can be extended by using an electrode grinder ★③ |
| Auto-start | Splice / Heating |
| Automatic Fiber Identification | SMF / MMF / other |
| Automatic ARC Identification | Automatic arc calibration by air pressure and temperature |
| Results Storage | The last 10,000 splice records and 2,000 result images |
| Tension Test | 1.96~2.25N |
| Operating Condition | Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -20~60°C |
| Display | 5.0” color high resolution (800 x 480) display |
| Fiber Magnification | X, Y, XY, X/Y : 320X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| Terminal | USB2.0 |
| Weight | 1.6kg without battery / 1.9kg with battery |
| Size | 138H x 160W x 150D mm (including rubber bumper) |
★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② Splice & Heat cycles may vary depending on the battery status and the operating environment.
★③ Electrode life may vary depending on the operating environment.
Download
Product manual PDF
Tutorials
Products Tutorials
Configration
Product configuration
Fusion splicer
all equipped
